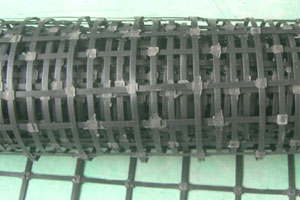

Convex Grid Series

Big rally
Yanmi every aspect of the tensile yield can reach 20-150 KN, the transportation, railway, water three product quality supervision, inspection and testing centres.
Small deformation
Steel Grid bump the yield elongation ≤ 3% bump plastic grid yield ≤ 10% elongation.
Node high strength
Casting for the use of vertical and horizontal reinforcement bump connections with a grid, the node high strength, welding grid nodes shear strength ≥ 1.5 Mpa, Braille grid node limit peeling ≥ 400 N
Long life

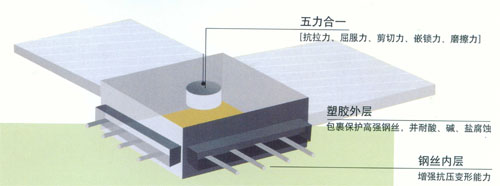

Plastic is the protection of high-strength steel materials, but also the power grid of plastic materials, it is acid, alkali and salt corrosion chemical characteristics, the scientific formula of anti-aging, anti-oxidant properties, applicable to all permanent works, life up to over 100 years old.
Good effect

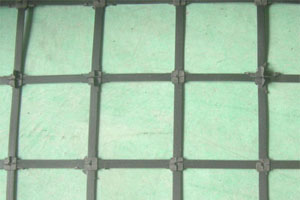

Grid node mesh molded convex structure, the grid and rock-socketed lock bite, could restrain the lateral displacement of soil and enhance foundation bearing capacity and reduce soil improvement of the overall settlement and differential settlement of the soil and enhance the overall performance basis, and can prevent surface cracking.
Cost Province
Through a number of examples of projects that use such materials reinforced soil engineering and the traditional way of building similar projects than can save 10% -50% cost

Special specifications can be customized based on user requirements

Model HL-TGG	Each Yanmi longitudinal elongation of the tensile yield KN/m	Yield elongation %	Limit of node dissection N	Width m	Volume long m
30	≥30	≤3	≥400	2±0.02 4±0.02	30±0.2 40±0.2 50±0.2
40	≥40
50	≥50
60	≥60
80	≥80
100	≥100
120	≥120
150	≥150

★Special specifications can be customized based on user requirements

Braille bidirectional (Steel) grid parameters

Model HL-TGG	Each Yanmi longitudinal elongation of the tensile yield KN/m		Vertical / horizontal elongation yield%	Limit of node dissection N	Width m	Volume long m
Model HL-TGG	Longitudinal	Transverse	Vertical / horizontal elongation yield%	Limit of node dissection N	Width m	Volume long m
30-30	≥30	≥30	≤3	≥400	2±0.02 4±0.02	30±0.2 40±0.2 50±0.2
40-40	≥40	≥40
50-50	≥50	≥50
60-60	≥60	≥60
80-80	≥80	≥80
100-100	≥100	≥100
120-120	≥120	≥120
150-150	≥150	≥150

★Special specifications can be customized based on user requirements

Braille one-way (plastic) grid parameters

Model HL-TGG	Each Yanmi longitudinal elongation of the tensile yield KN/m	Yield elongation %	Limit of node dissection N	2% elongation yieldKN/m	5% elongation yieldKN/m	Width m	Volume long m
30	≥30	≤3	≥400	≥10	≥15	2±0.02 4±0.02	30±0.2 40±0.2 50±0.2
40	≥40			≥14	≥20
50	≥50			≥17	≥25
60	≥60			≥20	≥30
80	≥80			≥27	≥40

★Special specifications can be customized based on user requirements

Braille bidirectional (plastic) grid parameters

Model HL-TGG	Each Yanmi longitudinal elongation of the tensile yield KN/m		Vertical / horizontal elongation yield %	Limit of node dissection N	2% elongation yieldKN/m	5% elongation yieldKN/m	Width m	Volume long m
Model HL-TGG	Longitudinal	Transverse	Vertical / horizontal elongation yield %	Limit of node dissection N	2% elongation yieldKN/m	5% elongation yieldKN/m	Width m	Volume long m
25-25	≥25	≥25	≤10	≥400	≥9	≥13	2±0.02 4±0.02	30±0.2 40±0.2 50±0.2
30-30	≥30	≥30			≥10	≥15
40-40	≥40	≥40			≥14	≥20
50-50	≥50	≥50			≥17	≥25
60-60	≥60	≥60			≥20	≥30
80-80	≥80	≥80			≥27	≥40

★Special specifications can be customized based on user requirements

Ranging from strong to bump aspect (Steel) grid parameters

Model HL-TGG	Each Yanmi longitudinal elongation of the tensile yield KN/m		Vertical / horizontal elongation yield%	Limit of node dissection N	Width m	Volume long m
Model HL-TGG	Longitudinal	Transverse	Vertical / horizontal elongation yield%	Limit of node dissection N	Width m	Volume long m
150-120	≥150	≥120	≤3	≥400	2±0.02 4±0.02	30±0.2 40±0.2 50±0.2
150-100	≥150	≥100
150-80	≥150	≥80
120-100	≥120	≥100
120-80	≥120	≥80
120-60	≥120	≥60
100-80	≥100	≥80
100-60	≥100	≥60
100-50	≥100	≥50
80-60	≥80	≥60
80-50	≥80	≥50
80-40	≥80	≥40
60-50	≥60	≥50
60-40	≥60	≥40
60-30	≥60	≥30
50-40	≥50	≥40
50-30	≥50	≥30
40-30	≥50	≥30

★Special specifications can be customized based on user requirements

Bump-ranging aspect to the (plastic) grid parameters

Model HL-TGG	Each Yanmi longitudinal elongation of the tensile yield KN/m		Yield elongation %	Limit of node dissection N	2% elongation yieldKN/m		5% elongation yield/m		Width m	Volume long m
Model HL-TGG	Longitudinal	Transverse	Yield elongation %	Limit of node dissection N	Longitudinal	Transverse	Longitudinal	Transverse	Width m	Volume long m
80-60	≥80	≥60	≤10	≥400	≥27	≥20	≥40	≥30	2±0.02 4±0.02	30±0.2 40±0.2 50±0.2
60-40	≥60	≥40			≥20	≥14	≥30	≥20
50-30	≥50	≥30			≥17	≥10	≥25	≥15
40-25	≥40	≥25			≥14	≥9	≥20	≥13

★Special specifications can be customized based on user requirements
